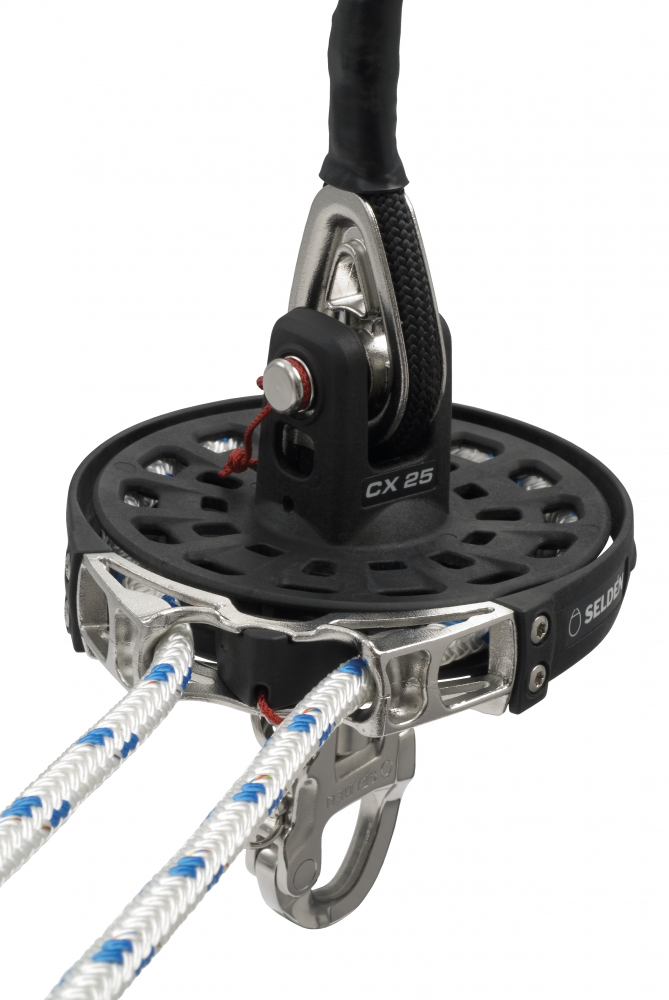

CX25, BASIC PACK
£1,452.76 (exc VAT) per EACH
£1,743.31 (inc VAT)
£1,743.31 (inc VAT)
Seldén CX and Seldén GX are operated with an endless furling line running over a line driver drum. The furling line is preferably led all the way back to the cock pit and Seldén offer the Double Fairlead and the Twin-Cam block for a well organized set up. A purpose made AT-Cable has been developed to secure the function of the system and as the performance of top-down furling is dependant on the torsional rigidity of the AT-cable, it is included in the Seldén GX furlers.
• Metal ”teeth” in the drum make for a good grip on the line when furling the sail.
• A wedge in the line guide separates the line from the drum when unfurling the sail and the drum spins freely.
• Sealed steel bearing in the drum and in the halyard swivel for long service life.
• Rubber fender prevents the halyard swivel from chafing the mast while hoisting the furled sail.
• CX. Spring loaded lock makes it easy to connect the thimbles to the drum and the halyard swivel.
• All structural parts are made of high-strength Duplex stainless steel. This means reduced material and low weight.
• Non-structural parts are made of impact resistant glass fibre reinforced polyamide composite.
| Seldén CX | Kit including drum and halyard swivel (Art. No.) | Drum Size (mm) | Safe Working Load, kN | Max Suggested sail area, m2 | Max RM at 30° heel, kNm | Approx. displacement, tonnes |
| CX10 | 545-010-10 | 105 | 10 | 50 | 25 | 5 |
| CX15 | 545-100-10 | 120 | 15 | 80 | 45 | 7.7 |
| CX25 | 545-200-10 | 150 | 25 | 115 | 90 | 14 |
| CX24 | 545-433-10 | 190 | 45 | 200 | 200 | 28 |
| Brand | Seld |
|---|
There are no downloads for this product.
