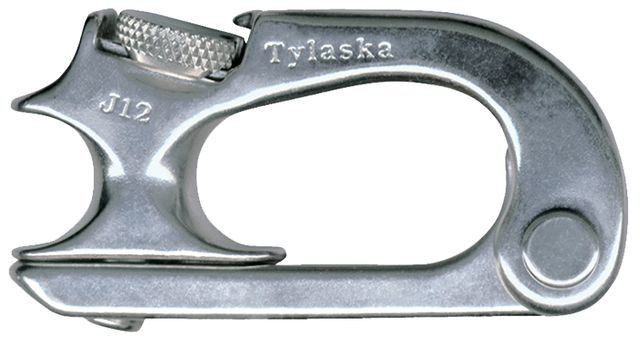

Tylaska J-Lock Shackle
From £187.92 (inc VAT)£156.60 (exc VAT)
Easily spliced onto genoa sheet, outhauls, and halyards, the low-profile Tylaska J-Lock Shackle fits through most genoa blocks for fast sheet changes. The unique patented locking plunger provides the ultimate protection against accidental opening during flogging.
- Easy to use working mechanism
- Heat treated 17-4 PH stainless steel
| Part No/Model | TY1308 / J8 | TY1312 / J12 | TY1320 / J20 | TY1330 / J30 |
| A | 15.7mm | 17.5mm | 21.3mm | 26.4mm |
| B | 11.2mm | 12.7mm | 16mm | 19mm |
| C | 53.9mm | 61.7mm | 77mm | 103.1mm |
| D | 26.9mm | 30.7mm | 38.9mm | 49.3mm |
| E | 10.7mm | 12.2mm | 16mm | 20.3mm |
| Max Line Size | 10mm | 12mm | 14mm | 17mm |
| Weight | 54g | 82g | 167g | 403g |
| Working Load Limit | 1361kg | 2722kg | 3629kg | 6804g |
| Breaking Load | 3629kg | 5433kg | 9072kg | 13608g |
| Model | J8, J12, J20, J30 |
|---|
