Protect Tape - SPIRAL Rigging Protection Tape
From £61.44 (inc VAT)£51.20 (exc VAT)
SPIRAL Rigging Protection Tape is a solution to protect the composite standing rigging, frequently damaged by jib and gennaker sheets increasing the risk of equipment failure and esponential cost for replacement. The product is spiral cut cable wrap made of PTFE, resistant to abrasion, expandable and applicable on standing rigging as it is or wrapped by MASK for more durable protection.
Typical applications
- Standing rigging (V1, D1, stays, etc)
- Lifelines

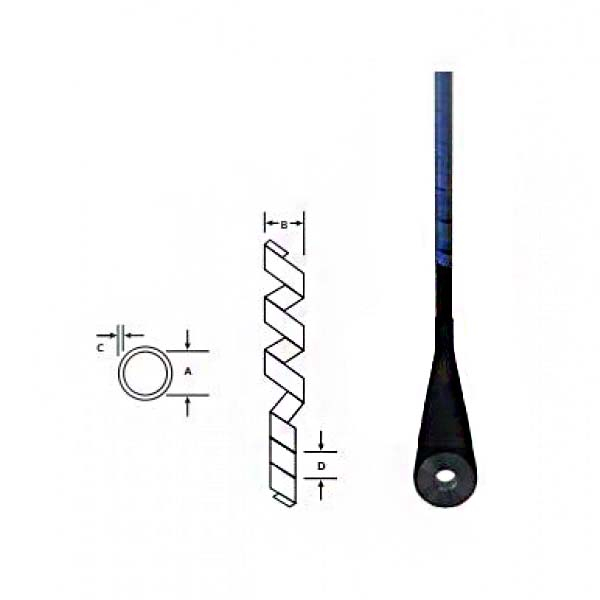

| PART CODE | INTERNAL DIAMETER (A) | MAX DIAMETER (B) | WALL (C) | PITCH OF HELICAL CUT (D) |
| PRS0318 | 1.59mm | 12.70mm | 0.76mm | 6.35mm |
| PRS0476 | 3.18mm | 25.40mm | 0.76mm | 6.35mm |
| PRS0635 | 4.76mm | 50.80mm | 0.76mm | 9.53mm |
| PRS0794 | 6.35mm | 63.50mm | 0.76mm | 9.53mm |
| PRS0953 | 7.94mm | 76.20mm | 0.76mm | 11.11mm |
| PRS1270 | 11.11mm | 101.60mm | 0.76mm | 14.29mm |
| PRS1588 | 14.29mm | 127.00mm | 0.76mm | 15.88mm |
| PRS1905 | 17.46mm | 152.40mm | 0.81mm | 22.23mm |
| PRS2540 | 23.81mm | 203.20mm | 1.02mm | 25.40mm |
| Model | 318, 476, 635, 794, 953, 1270, 1588, 1905, 2540 |
|---|
