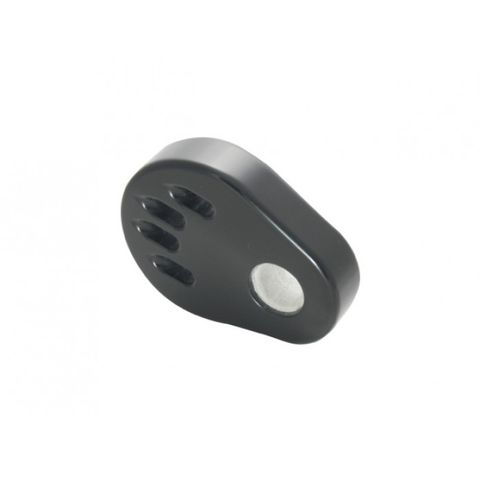

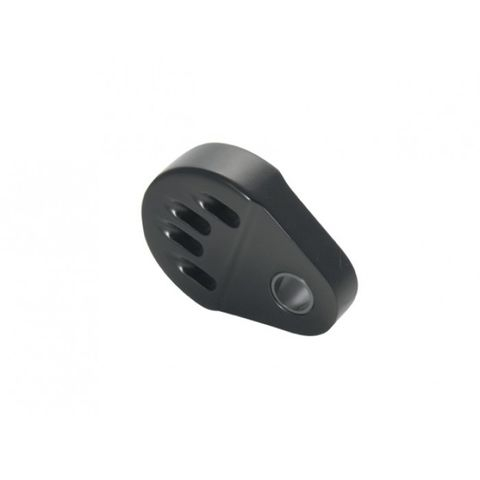

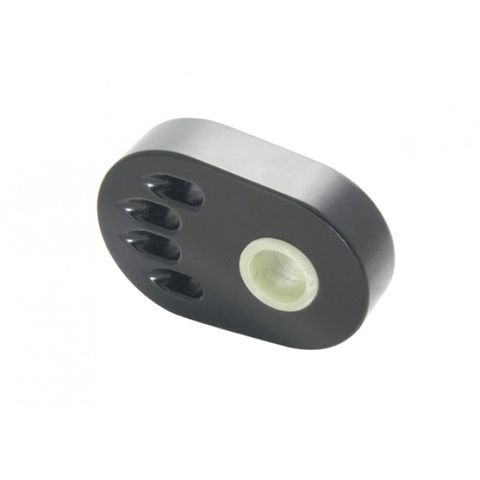

Colligo Marine Carbon Chainplate Distributor (Male)
Colligo Marine Male Chainplate Distributors are designed for setting up the tension of your line through lashings for either female-style chainplates or when using a combination lashing & turnbuckle tensioning system. They feature the following:4 lashing lines for greater load distribution and easy tensioningWide lashing hole distribution for easy final tensioningHardcoat anodizingExtra large sections for higher strength ratingMade from 6061-T6, Billet AluminumSleeved mounting pin holes for long term durability
Note: Some pin size flexibility is designed into these parts.
SPECIFICATIONS
CSS90BLK Up to 3/16"" lashing line and 1/4" pin without sleeve.
CSS91BLK Up to 1/4" lashing line and 1/2" pin with Isolator sleeve (5/8" pin without sleeve)
CSS92BLK Up to 1/4" lashing line and 5/8" pin with Isolator sleeve (3/4" pin without sleeve)

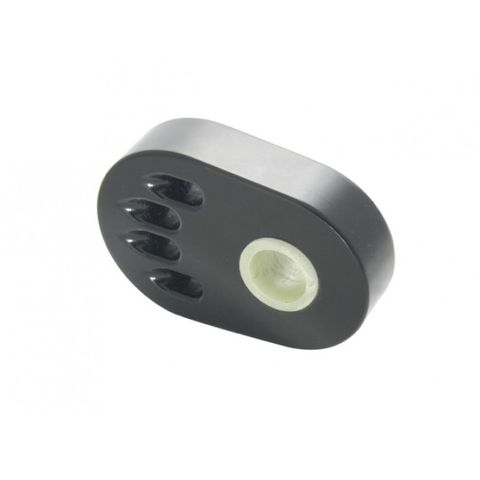

CSS93BLK Up to 5/16" lashing line and 3/4" pin with Isolator sleeve (7/8" pin without sleeve)
| Brand | Colligo Marine |
|---|---|
| Hole Diameter | 1/4", 1/2", 5/8", 7/8" |
